Draw Wire Encoders (Incremental)
AWE 210

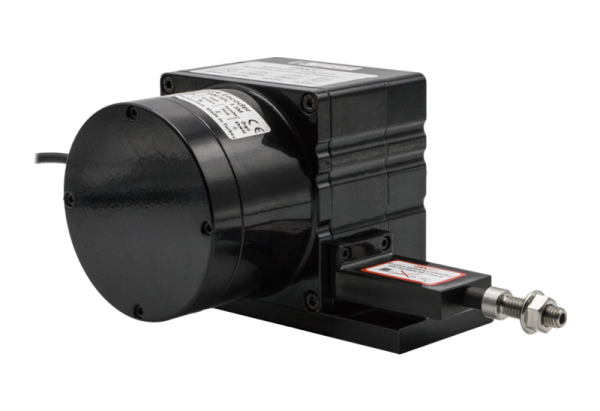

Draw Wire Encoder - High Strength Stainless Steel Wire, 0–5,000 mm
Draw Wire Encoder - High Strength Stainless Steel Wire, 0–5,000 mm
Medium-range draw wire encoder providing incremental output for position control in industrial machines. Suitable for marble, glass, and wood processing, and general CNC and hydraulic equipment requiring stroke lengths up to 5,000 mm.
Stroke to 5,000 mm - 0–1,000 mm or 0–5,000 mm versions
5 pulses/mm standard resolution - 0.2 mm/pulse
±0.25% FS accuracy - reliable positioning
2 m/s max speed - suitable for fast-moving axes
10 N retraction force - firm wire tension
IP53 rated - dust and spray protected
| Stroke (Measuring) Length | 0–1,000 mm and 0–5,000 mm |
| Resolution | 5 pulses/mm (0.2 mm/pulse standard) |
| Maximum Speed | 2 m/s |
| Required Force | 10 N |
| Measuring Type | Optical (Incremental) |
| Supply Voltage | 5–30 VDC ±20% |
| Max Output Current | 60 mA per channel |
| Output Signals | A, B; A, B, Z; A, /A, B, /B; A, /A, B, /B, Z, /Z |
| Accuracy | ±0.25% FS |
| IP Protection | IP53 |
| Operating Temperature | −25°C to +85°C |
| Relative Humidity | 95% |
| Weight | ~1,900 g |
| Housing Material | Aluminium / Steel / Plastic |
| Measuring Wire | Stainless Steel |
| Connection Cable | 3 m (standard), 5 m, 10 m |
Contact us for the full technical drawing (PDF)
Get a quote, confirm specifications, or ask a technical question.
