Draw Wire Sensors / Potentiometers (Analog)

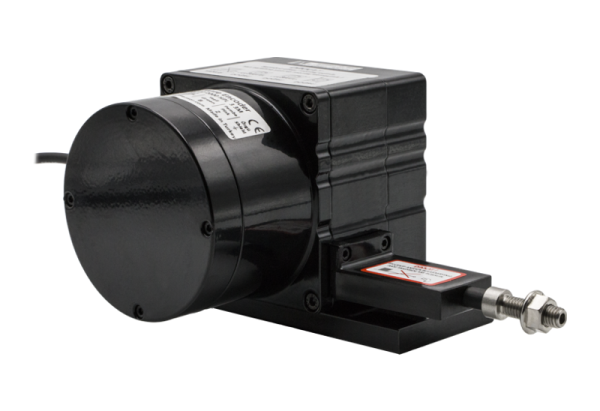

AWP 210
Medium-Range Draw Wire Sensor - 0–5,000 mm, Potentiometric/Analog
Medium-Range Draw Wire Sensor - 0–5,000 mm, Potentiometric/Analog
Contact us for the full technical drawing (PDF)
| Stroke | 0–1,000 mm and 0–5,000 mm |
| Output | Potentiometric, 0–10 VDC, 4–20 mA |
| Linearity | ±0.5% FS |
| Max Speed | 0.5 m/s |
| Required Force | 10 N |
| Resistance | 5 KΩ (std), 10 KΩ |
| IP Protection | IP53 |
| Operating Temperature | −25°C to +85°C |
| Weight | ~1,900 g |
| Wire | Stainless Steel |
