Draw Wire Encoders (Incremental)

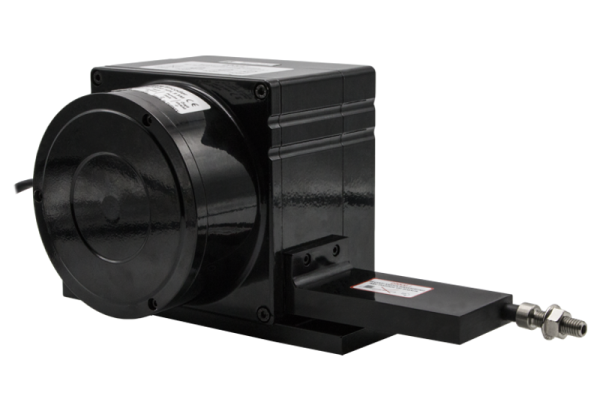

AWE 310
Draw Wire Encoder - High Strength Stainless Steel Wire, 0–10,000 mm
Draw Wire Encoder - High Strength Stainless Steel Wire, 0–10,000 mm
Long-range draw wire encoder for strokes up to 10 metres, widely used in elevators, cranes, hydraulic machines, and industrial robots. The AWE 310 delivers reliable incremental optical output over its full stroke with ±0.25% FS accuracy.
Stroke to 10,000 mm - 0–5,000 mm or 0–10,000 mm versions
0.3 mm/pulse standard resolution - 3 pulses/mm
12 N retraction force - maintains wire tension over long extensions
~2,700 g body - robust housing for demanding environments
IP53 rated - dust and water spray protection
±0.25% FS accuracy - reliable over the full stroke length
| Stroke (Measuring) Length | 0–5,000 mm and 0–10,000 mm |
| Resolution | 3 pulses/mm (0.3 mm/pulse standard) |
| Maximum Speed | 2 m/s |
| Required Force | 12 N |
| Measuring Type | Optical (Incremental) |
| Supply Voltage | 5–30 VDC ±20% |
| Max Output Current | 60 mA per channel |
| Output Signals | A, B, Z (standard); A, /A, B, /B, Z, /Z |
| Accuracy | ±0.25% FS |
| IP Protection | IP53 |
| Operating Temperature | −25°C to +85°C |
| Relative Humidity | 95% |
| Weight | ~2,700 g |
| Housing Material | Aluminium / Steel / Plastic |
| Measuring Wire | Stainless Steel |
| Connection Cable | 3 m (standard), 5 m, 10 m |
Contact us for the full technical drawing (PDF)
Get a quote, confirm specifications, or ask a technical question.
