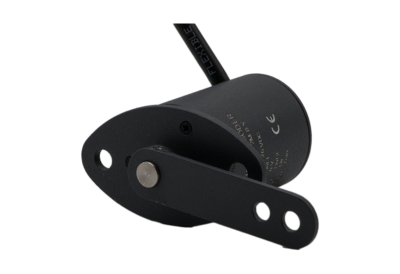

RCS K37
Non-Contact Angle Sensor — Sleeve Mount Connection, IP67
Non-Contact Angle Sensor — Sleeve Mount Connection, IP67
The RCS K37 is a non-contact magnetic angle sensor using a sleeve connection mount for direct installation onto shafts. The sleeve mount allows the sensor to slide onto and grip the shaft, eliminating the need for separate couplings. 12-bit resolution and full 0–360° coverage with IP67 protection suit most industrial angle measurement applications.
Sleeve connection — direct shaft mount, no separate coupling required
Non-contact magnetic measurement — no mechanical wear
0–360° user selectable — full revolution coverage
12-bit resolution — 4,096 positions per revolution
IP67 protection — fully sealed
Multiple analog output options — 4–20 mA, 0–5V, 0–10V, Ratiometric
| Measuring Range | 0–360° (user selectable) |
| Measuring Principle | Magnetic (non-contact) |
| Mount Type | Sleeve connection |
| Resolution | 12-bit |
| Output | 4–20 mA, 0–5 VDC, 0–10 VDC, Ratiometric |
| IP Rating | IP67 |
| Supply Voltage | 12–30 VDC |
| Operating Temperature | −40°C to +85°C |
Supply voltage: 12–30 VDC. Specify output type on order.
Contact us for the full technical drawing (PDF)
