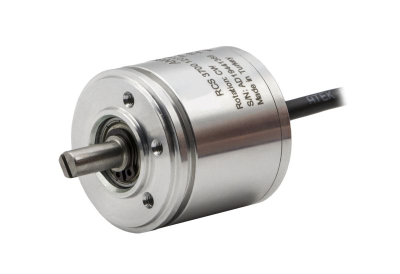

RCS 3700
Non-Contact Angle Sensor — 6 mm Shaft, 120 RPM, IP67
Non-Contact Angle Sensor — 6 mm Shaft, 120 RPM, IP67
The RCS 3700 is a non-contact magnetic angle sensor with a standard 6 mm shaft and 120 RPM maximum operating speed. The compact design with standard shaft coupling makes it a versatile drop-in solution for angle and position feedback where higher speeds are not required. IP67 and wide temperature range suit most industrial environments.
6 mm shaft — compatible with standard shaft couplings
Non-contact magnetic measurement — no mechanical wear
0–360° user selectable — full revolution coverage
120 RPM max speed — suitable for slow-to-medium speed applications
IP67 protection — fully sealed
Ratiometric / voltage / current outputs — standard analog interfaces
| Measuring Range | 0–360° (user selectable) |
| Measuring Principle | Magnetic (non-contact) |
| Shaft Diameter | 6 mm |
| Max Speed | 120 RPM |
| Output | Ratiometric, 0–5 VDC, 0–10 VDC, 4–20 mA |
| IP Rating | IP67 |
| Supply Voltage | 12–30 VDC |
| Operating Temperature | −40°C to +85°C |
Supply voltage: 12–30 VDC. Specify output type on order.
Contact us for the full technical drawing (PDF)
