Linear Position Transducers & Encoders
LTC Series
Double Articulated, 90° Socket, ±30° Angular Motion
Articulated
IP62
1,000 mm
±30°
Double Articulated, 90° Socket, ±30° Angular Motion

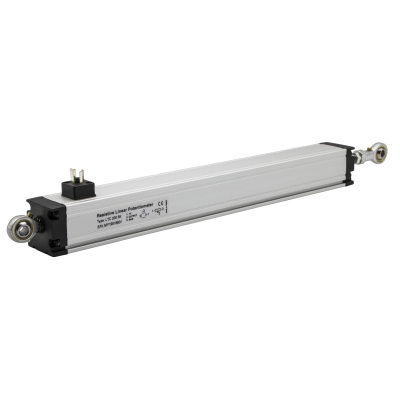

The LTC Series linear position transducer has a double-articulated design with a 90° socket connection, allowing ±30° angular motion at both ends. This makes it ideal for applications where the transducer and mounting point are not perfectly aligned, such as hydraulic cylinders, linkages, and mechanical arms. Strokes from 50 to 1,000 mm.
Double articulated design — ±30° angular motion at both ends
90° socket connection — simplified cable routing in confined installations
50–1,000 mm stroke range — multiple increments available to order
Infinite resolution — resistive element with no quantisation error
IP62 protection — sealed against dust and limited water jets
50 million movement life — conductive plastic resistive element
| Stroke Range | 50 – 1,000 mm |
| Angular Motion | ±30° (double articulated, both ends) |
| Output Signal | Potentiometric, 4–20 mA, 0–10 VDC |
| IP Rating | IP62 |
| Resolution | Infinite (resistive element) |
| Life | 50 × 10⁶ movements |
| Connection | 90° socket |
| Supply Voltage (Potentiometric) | 42 V max. |
| Supply Voltage (Current/Voltage) | 12–30 VDC |
| Operating Temperature | −30°C to +100°C |
| Body Material | Aluminium |
| Rod Material | Stainless Steel |
Current and voltage output models require 12–30 VDC supply. Potentiometric models accept up to 42 V.
