Linear Position Transducers & Encoders

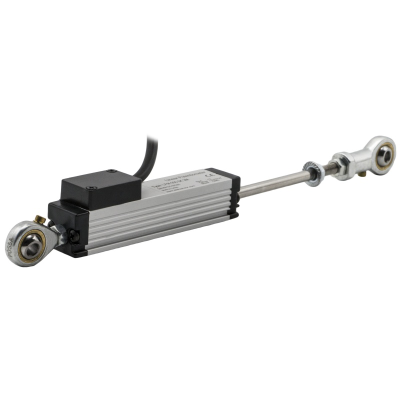

LFM Series
Compact Double-Articulated Transducer — 10 to 300 mm
Compact
IP40
300 mm
100M Life
Compact Double-Articulated Transducer — 10 to 300 mm
The LFM Series is the compact member of the linear transducer family, covering short strokes from 10 to 300 mm. Its double-articulated design accommodates angular misalignment at both ends. With 100 million movement life and optional IP65 protection, the LFM suits high-cycle applications in tight spaces.
Compact size — designed for short strokes from 10 to 300 mm
Double-articulated both ends — handles angular misalignment in any mounting
Infinite resolution — resistive element with no quantisation error
100 million movement life — ideal for high-cycle applications
IP40 standard, IP65 optional — upgrade protection for washdown environments
Potentiometric / voltage / current outputs — integrates with any controller
| Stroke Range | 10 – 300 mm |
| Type | Compact double-articulated transducer |
| Output Signal | Potentiometric, 4–20 mA, 0–10 VDC |
| IP Rating | IP40 standard (IP65 optional) |
| Resolution | Infinite |
| Life | 100 × 10⁶ movements |
| Supply Voltage (Potentiometric) | 42 V max. |
| Supply Voltage (Current/Voltage) | 12–30 VDC |
| Operating Temperature | −30°C to +100°C |
| Body Material | Aluminium |
Current and voltage output models require 12–30 VDC supply. Potentiometric models accept up to 42 V. IP65 option available — specify at order.
