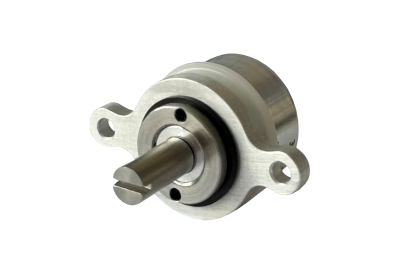

Rotary Potentiometer
ERP F 22
22.2 mm Flange Mount — 260° Electrical Angle, IP50
Flange Mount
IP50
±1% Linearity
260°
22.2 mm Flange Mount — 260° Electrical Angle, IP50
The ERP F 22 is the flange-mounted variant of the 22 mm potentiometer family. The flange connection allows panel or bracket mounting without needing a separate mounting bushing. The 260° electrical angle and ±1% linearity make it suitable for general industrial control applications.
Flange-mounted design — direct panel or bracket mounting without a separate bushing
22.2 mm compact body — fits tight panel cutouts and compact enclosures
260° electrical angle — wide angular range for most control applications
±1% linearity — consistent accuracy across the full electrical travel
Infinite resolution — conductive plastic element with no quantisation steps
IP50 — protected against dust ingress
| Body Diameter | 22.2 mm |
| Mounting | Flange connection |
| Electrical Angle | 260° |
| Linearity | ±1% |
| IP Rating | IP50 |
| Output Type | Potentiometric |
| Resolution | Infinite |
Specify the resistance value at time of order. Both options use the same 22.2 mm flange-mount body and 260° electrical angle.
22.2 mm body diameter, flange mount
