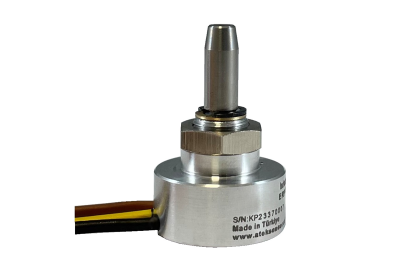

Rotary Potentiometer
ERP S 23
23.2 mm Body, IP65 — Cable Output for Harsh Environments
IP65
±1% Linearity
320° Travel
Harsh Environments
23.2 mm Body, IP65 — Cable Output for Harsh Environments
The ERP S 23 is an IP65-rated compact potentiometer designed for harsh industrial environments where dust and water spray protection is essential. At 23.2 mm body diameter with a sealed cable output, it provides higher environmental protection than the ERP S 22, suitable for outdoor and washdown environments. The 320° electrical angle and ±1% linearity cover most angular position applications.
IP65 dust and water spray protection — fully sealed against dust and low-pressure water jets
Sealed cable output — no exposed connector, maintaining IP65 integrity in field installations
320° electrical angle — wide travel covering most angular position requirements
±1% linearity — consistent accuracy across the full electrical travel
Compact 23.2 mm body — minimal footprint for space-constrained installations
Wide temperature range — rated −25°C to +85°C for outdoor and industrial use
| Body Diameter | 23.2 mm |
| Electrical Angle | 320° |
| Linearity | ±1% |
| IP Rating | IP65 |
| Output | Cable (for sealed connection) |
| Resolution | Infinite |
| Operating Temperature | −25°C to +85°C |
| Feature | ERP S 22 |
| Body Diameter | 22 mm |
| IP Rating | IP53 |
| Connection | PCB pins or connector |
| Mechanical Stop | With or without |
| Feature | ERP S 23 |
| Body Diameter | 23.2 mm |
| IP Rating | IP65 |
| Connection | Sealed cable output |
| Mechanical Stop | Standard |
Choose the ERP S 23 when IP65 protection and a sealed cable connection are required for outdoor, washdown, or harsh industrial installations.
23.2 mm body diameter, IP65 sealed
Contact us for the full technical drawing (PDF)
Get a quote or confirm IP rating, cable length, and resistance value for your application.
