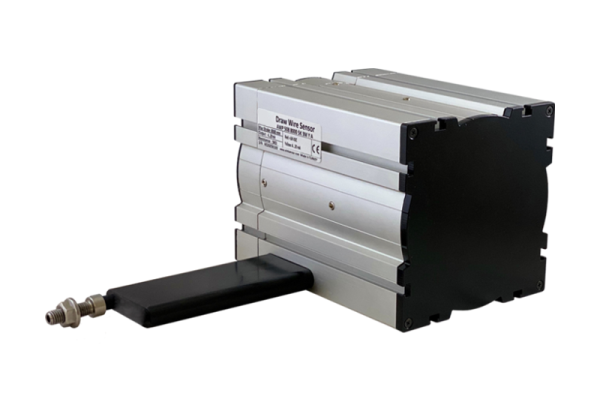

Draw Wire Position Transducer (Analog)
AWP 508
Analog Draw Wire Sensor — 0–8,000 mm, CANopen Option, IP54
Analog
IP54
±0.5% FS
CANopen
Analog Draw Wire Sensor — 0–8,000 mm, CANopen Option, IP54
The AWP 508 is a draw wire position transducer providing analog position feedback over strokes up to 8,000 mm. Like others in the AWP family, it converts linear wire travel into a proportional electrical signal. CANopen output is available for fieldbus integration. The IP54 housing (optional IP67) suits industrial environments.
Strokes up to 8,000 mm — covers long-range position feedback in a single unit
Multiple output types — potentiometric, 0–10 VDC voltage, 4–20 mA current, and CANopen
±0.5% FS linearity — reliable accuracy across the full measurement range
IP54 standard, IP67 optional — suited to wet and dusty environments
Stainless steel wire — corrosion resistant, high tensile strength
CANopen fieldbus option — direct integration into industrial networks
| Stroke Length | 0–4,000 mm or 0–8,000 mm |
| Output | Potentiometric, 0–10 VDC, 4–20 mA, CANopen |
| Linearity | ±0.5% FS |
| IP Rating | IP54 (optional IP67) |
| Measuring Wire | Stainless steel |
| Body Material | Aluminium |
| Operating Temperature | −25°C to +85°C |
| Potentiometric | Resistive output (A/V series) |
| 0–10 VDC | Voltage output, proportional to position |
| 4–20 mA | Current loop output, noise-immune over long cable runs |
| CANopen | Fieldbus digital output per CiA 406 profile |
The potentiometric version is available in the A/V series. Voltage and current output variants suit direct PLC analogue input cards. CANopen is available for modern fieldbus-based machine architectures.
Aluminium housing, cable or M12 connector exit
Contact us for the full technical drawing (PDF)
Get a quote or ask about stroke length, output type, and CANopen configuration.
