Draw Wire Sensors / Potentiometers (Analog)

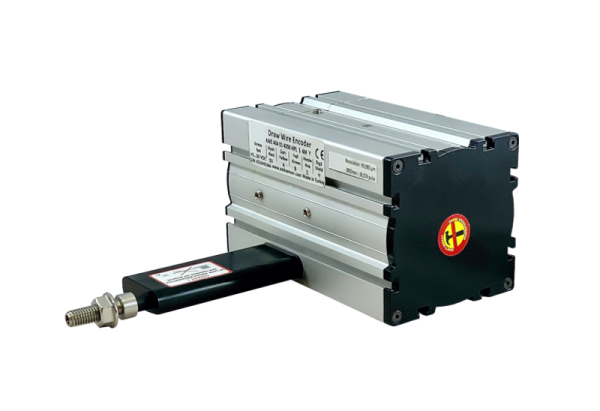

AWP 404
Draw Wire Sensor - Aluminium Box Body, 0–4,000 mm, Multi-Output
Draw Wire Sensor - Aluminium Box Body, 0–4,000 mm, Multi-Output
Compact aluminium box body draw wire sensor for strokes up to 4 metres. Offers the widest output variety in the range including potentiometric, voltage, current, CANopen, and SSI. Optional IP67 protection available.
Stroke to 4,000 mm - 0–1,000 mm or 0–4,000 mm
Five output types - Potentiometric, 0–10V, 4–20 mA, CANopen, SSI
IP54 standard, IP67 optional - flexible deployment
Aluminium box body - industrial-grade rugged housing
±0.5% FS linearity - consistent accuracy across the stroke
| Stroke (Measuring) Length | 0–1,000 mm and 0–4,000 mm |
| Linearity | ±0.5% FS |
| Output Options | Potentiometric, 0–10 VDC, 4–20 mA, CANopen, SSI |
| IP Protection | IP54 (Optional IP67) |
| Body Material | Aluminium |
| Measuring Wire | Stainless Steel |
Contact us for the full technical drawing (PDF)
