Incremental Rotary Encoder (Wheel Type)

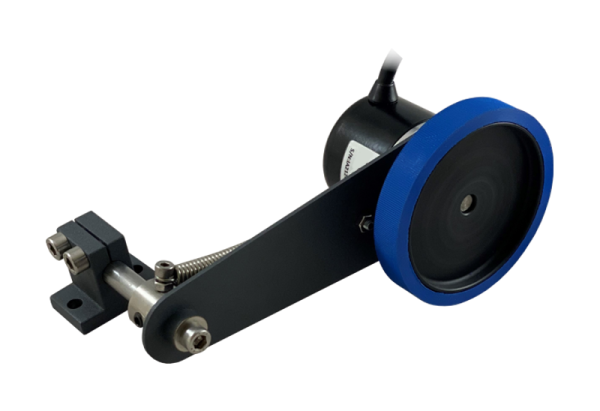

ATE 10
Single-Wheel Spring Type — Length & Speed Measurement
Single-Wheel Spring Type — Length & Speed Measurement
The ATE 10 is a single-wheel spring-loaded encoder designed for measuring the length and speed of moving material surfaces. A spring mechanism keeps the wheel in constant contact with the material, converting linear motion into incremental pulses. The 250 mm or 256 mm wheel circumference allows direct length calculation without complex scaling factors. The ATE 20 is the double-wheel variant for applications requiring higher accuracy or redundancy.
Single-wheel spring-loaded design - constant contact with moving material
250 mm or 256 mm circumference - simplifies direct length calculation
Spring contact mechanism - maintains consistent measurement pressure
IP54 rated - protected for industrial floor-level environments
3,000 RPM operating speed - handles fast-moving production lines
Measures length and surface speed - textile, paper, sheet metal, and packaging
| Type | Single-wheel spring loaded |
| Wheel Circumference | 250 mm or 256 mm |
| Operating Speed | 3,000 RPM max. |
| IP Protection | IP54 |
| Output Type | Incremental pulses |
| Applications | Textile, packaging, sheet manufacturing |
| Supply Voltage (Push-Pull) | 10–30 VDC |
| Supply Voltage (TTL) | 5 VDC |
| Output Type | Push-Pull (PP), TTL Line Driver, Open Collector |
| Output Signals | A, B, Z |
| Electrical Connection | Shielded cable or M12 connector |
Dimensional drawing placeholder
Contact us for full technical drawing (PDF)
