Incremental Rotary Encoders
ATE 20
Double Wheel Type Incremental Encoder - Length & Speed Measurement
Double Wheel Type Incremental Encoder - Length & Speed Measurement

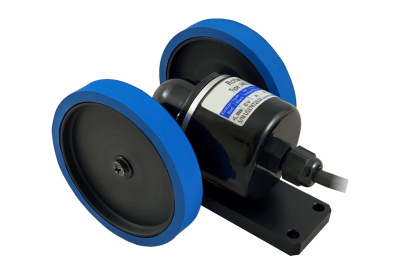

The ATE 20 uses a double-wheel structure to measure the length and speed of moving targets. Output waveform corresponds to measurement distance in international measurement units. Suitable for textile, packaging, sheet manufacturing, and general industrial machinery.
Double-wheel structure - higher contact accuracy vs single wheel
250 mm or 256 mm circumference - selectable for different counting requirements
NBR rubber outer tyre - good grip, wear resistant
IP54 protection - factory-ready
~380 g weight - robust yet manageable
| Wheel Circumference | 250 mm or 256 mm |
| Wheel Diameter | 79.6 mm (250 mm) or 81.5 mm (256 mm) |
| Operating Speed | 3,000 RPM max. |
| Response Frequency | 300 kHz |
| Supply Current | 50 mA nominal |
| Output Current | 100 mA max. per channel |
| IP Protection | IP54 |
| Operating Temperature | −25°C to +85°C |
| Storage Temperature | −40°C to +100°C |
| Ambient Humidity | 35–85% RH |
| Output Signals | A, /A, B, /B, Z, /Z |
| Weight | ~380 g |
| Encoder Material | Aluminium |
| Wheel Material | NBR (outer) + POM (body) |
Contact us for the full technical drawing (PDF)
Get a quote, confirm specifications, or ask a technical question.
