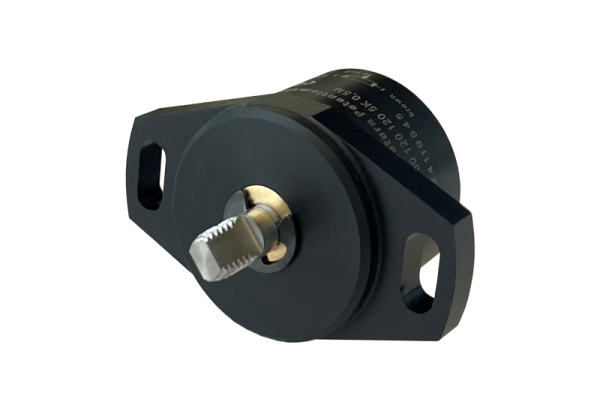

Rotary Potentiometer
SRP 30
Self-Returning, 30 mm Body, IP67 — 2 Million Cycles
Spring Return
IP67
±1% Linearity
2M Cycles
Self-Returning, 30 mm Body, IP67 — 2 Million Cycles
The SRP 30 is a spring-return potentiometer that automatically returns to its zero position when released. Available in three electrical angle options (60°, 110°, 120°), it suits joystick controls, throttle handles, pedals, and any application where automatic return-to-centre is required. IP67 ensures full protection against dust and temporary water immersion.
Spring-return mechanism — shaft automatically returns to zero position when released, no operator action needed
60°/110°/120° angle options — select the travel range to match your joystick or control geometry
IP67 fully sealed — complete dust protection and temporary water immersion resistance
±1% linearity — consistent accuracy across the selected electrical travel
2 million cycles life — long-life design suited to frequent actuation in operator controls
30 mm compact body — fits standard control lever and joystick assemblies
| Body Diameter | 30 mm |
| Electrical Angle | 60° / 110° / 120° (selectable) |
| Linearity | ±1% |
| IP Rating | IP67 |
| Life | 2 million cycles |
| Output | Potentiometric |
| Feature | Self-returning to zero position |
| 60° Version | Short travel — ±30° from centre, high sensitivity |
| 110° Version | Medium travel — ±55° from centre, balanced control |
| 120° Version | Wide travel — ±60° from centre, for larger deflection ranges |
| Resistance Value | 5 kΩ or 10 kΩ (specify at order) |
| Return Torque | Contact us for spring force specification |
| Electrical Connection | Cable (IP67 sealed) |
All three angle options use the same IP67 30 mm body. Specify the required electrical angle and resistance value when ordering.
30 mm body diameter, IP67 sealed
Contact us for the full technical drawing (PDF)
Get a quote or confirm electrical angle, spring return force, and resistance value for your application.
