Non-Contact Angle Sensor - Push-On Mounting, IP67, Analog Output
Non-Contact Angle Sensor - Push-On Mounting, IP67, Analog Output

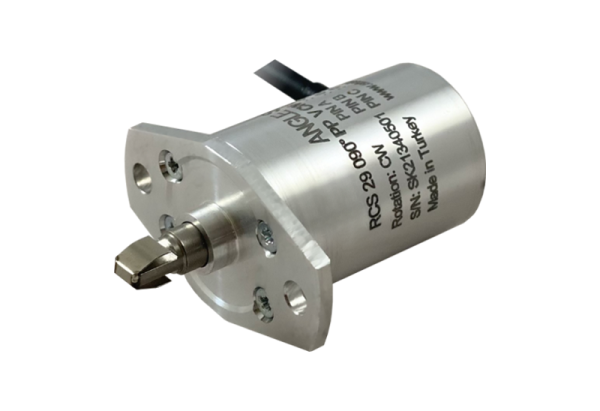

The RCS 29 is a non-contact magnetic angle sensor with a push-on mounting mechanism for the easiest shaft installation in its class. Its 0–360° user-selectable range, 12-bit resolution, and IP67 protection make it suitable for cranes, solar trackers, robotics, and automotive applications.
Push-on mounting - simplest installation, no screws or coupling required
Non-contact magnetic measurement - no mechanical wear, long service life
User-selectable 0–360° range - configure without tools
IP67 protection - fully sealed for outdoor and wet environments
12-bit resolution - 4,096 steps per revolution
±0.5% FS linearity - consistent across the full measuring range
| Measuring Range | 0 to 360° (user selectable) |
| Measuring Principle | Magnetic, Non-contact |
| Linearity | ±0.5% FS |
| Resolution | 12-bit |
| Repeatability | 0.1° |
| Response Frequency | 250 Hz |
| Output | 4–20 mA, 0–5 VDC, 0–10 VDC, 0.5–4.5 V Ratiometric |
| Supply Voltage | 12–30 VDC |
| IP Rating | IP67 |
| Operating Temperature | −25°C to +85°C |
| Mechanical Connection | Push-on |
| Electrical Connection | 0.8 m cable |
Contact us for the full technical drawing (PDF)
