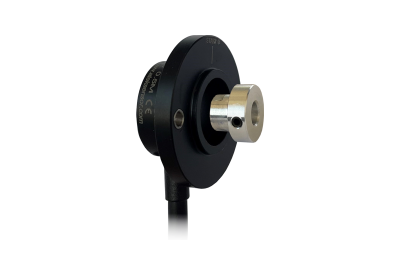

RCS 2210
Hollow Through-Bore Angle Sensor — 0–360°, Mechanically Unlimited Speed
Hollow Through-Bore Angle Sensor — 0–360°, Mechanically Unlimited Speed
The RCS 2210 uses a hollow through-bore design, allowing a shaft to pass completely through the sensor. This eliminates shaft couplings and simplifies installation on existing shafts. The non-contact magnetic principle imposes no speed limit — the sensor operates at any mechanical speed. IP67 protection and −40°C to +85°C operating range suit harsh industrial applications.
Hollow through-bore — shaft passes through the sensor body
No speed limitation — non-contact magnetic principle
0–360° range — user selectable
12-bit resolution — 4,096 positions per revolution
IP67 protection — fully sealed
No coupling or bellows required — reduces BOM and install time
| Measuring Range | 0–360° (user selectable) |
| Measuring Principle | Magnetic (non-contact) |
| Resolution | 12-bit |
| Max Speed | Mechanically unlimited |
| Mounting | Hollow through-bore |
| Output | 0–5 VDC, 0–10 VDC, 4–20 mA, Ratiometric |
| IP Rating | IP67 |
| Supply Voltage | 12–30 VDC |
| Operating Temperature | −40°C to +85°C |
The through-bore design eliminates the need for shaft couplings, bellows, or flexible connectors — the shaft passes directly through the sensor bore. This reduces installation complexity and removes a common failure point.
Contact us for the full technical drawing (PDF)
