Incremental Rotary Encoders
ARX S 58
Solid Shaft, 58 mm Body - Optical or Magnetic, Multi-Connector
Solid Shaft, 58 mm Body - Optical or Magnetic, Multi-Connector

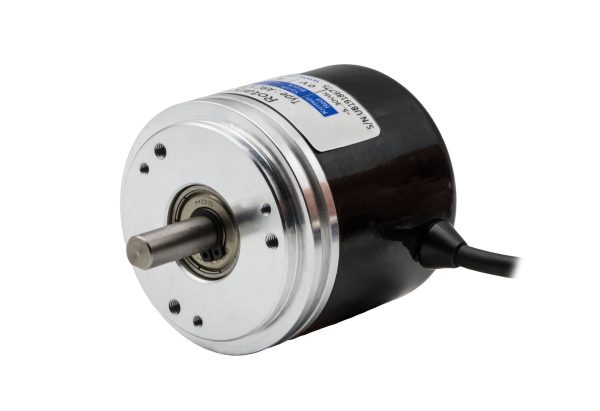

The ARX S 58 is a solid shaft encoder in a 58 mm body, supporting shaft diameters up to 14 mm with optical or magnetic measurement and multiple connector options including M12, M16, and M23.
Ordering note: ARX models combine two measurement families — specify optical (ARC) for maximum resolution and precision, or magnetic (ARS) for immunity to dust, oil, and condensation in harsh environments.
Solid shaft design - 6, 8, 10, 12, or 14 mm options
Optical or Magnetic - choose measurement type for your environment
Multiple connectors - M12/8 pin, M16/8 pin, M23/12 pin
Up to 20,000 PPR (optical) - precision measurement
IP54 protection - industry-standard ingress protection
| Measuring Principle | Optical (ARC) or Magnetic (ARS) |
| Body Diameter | 58 mm |
| Shaft Diameter | 6, 8, 10, 12, 14 mm |
| Resolution (Optical) | Up to 20,000 pulses/rev |
| Resolution (Magnetic) | 1 to 1,024 pulses/rev |
| Operating Speed (Optical) | 6,000 RPM max. |
| Operating Speed (Magnetic) | 3,000 RPM max. |
| Response Frequency | 300 kHz |
| IP Protection | IP54 |
| Operating Temperature | −25°C to +85°C |
| Output Signals | A, /A, B, /B, Z, /Z |
| Output Current | 100 mA max. per channel |
| Weight | ~200 g |
| Body Material | Aluminium |
| Shaft Material | Stainless Steel |
Contact us for the full technical drawing (PDF)
Get a quote, confirm specifications, or ask a technical question.
